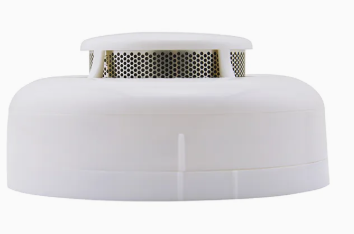

ASENWARE/LPCB Conventional Fire Alarm System AW-CSD381
AW-CSD381 is conventional photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
Inquiry Form
We will get in touch with you shortly
Description
Description
Product Features:
| Operating Voltage Range: | 9 to 28 VDC Non-polarized |
| Standby Current: | ≤120uA@24VDC |
| Maximum Alarm Current(LED on): | ≤15mA@24VDC （1K Ohm current-limiting resistance） |
| Operating Humidity Range: | ≤95%RH(40℃±2℃)RelativeHumidity, Non-condensing |
| Operating Temperature Range: | -10℃ to 50℃(14ºF to 122ºF) |
| Smoke Alarm Sensitivity: | 0.1-0.15dB/m |
| Height: | 48.2mm installed in Base |
| Diameter: | 99.45mm |
| Standard Number ref: | EN 54-7:2000 |
| EC certificate: | 0832-CPR-F2071 |
Technical parameters:
Terminal 6: IN+(Zone Input+)
Terminal 5: IN-(Zone Input-)
Terminal 2: Out+(Zone Output+)
Terminal 5: Out-(Zone Output-)
Terminal 6: Remote Indicator+
Terminal 3: Remote Indicator-
