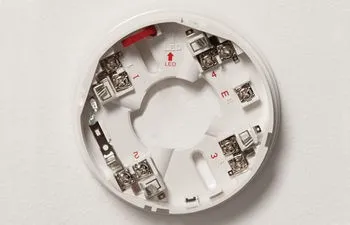

COOPER/EATON Addressable Detector Base UCAB300
Features and benefits
• Integral sensor shorting link
• Separate loop in and loop out terminals
• Dedicated earth terminal
• Stand off fixing feature
• Accepts side entry cables
• Selectable sensor locking feature
• Quick and simple to install
• Common mounting base for Eaton UL intelligent
addressable sensors
• Positive “lock” indication multiple cable entry points
• Easy to maintain/service
Inquiry Form
We will get in touch with you shortly
Description
Description
| Code | UCAB300 |
| Description | Standard Base |
| Construction | PC/ABS |
| Colour | White |
| Dimensions (Dia x D) | 104mm x 22mm |
| Suitable for use with | Eaton UL Fire Systems |
Installation
- Separate terminals are provided for loop in and loop out connections.
- Each terminal can accept up to 2 x 2.5mm cables.
- Base incorporates a substantial cable entry aperture in the rear of the base.
- Breakouts are provided to enable the sensor base to sit neatly over surface run cables and then enter via the rear entry aperture.
- The base incorporates a stand off feature to help prevent distortion when mounted on an uneven surface.
- Fixings are suitable surface
