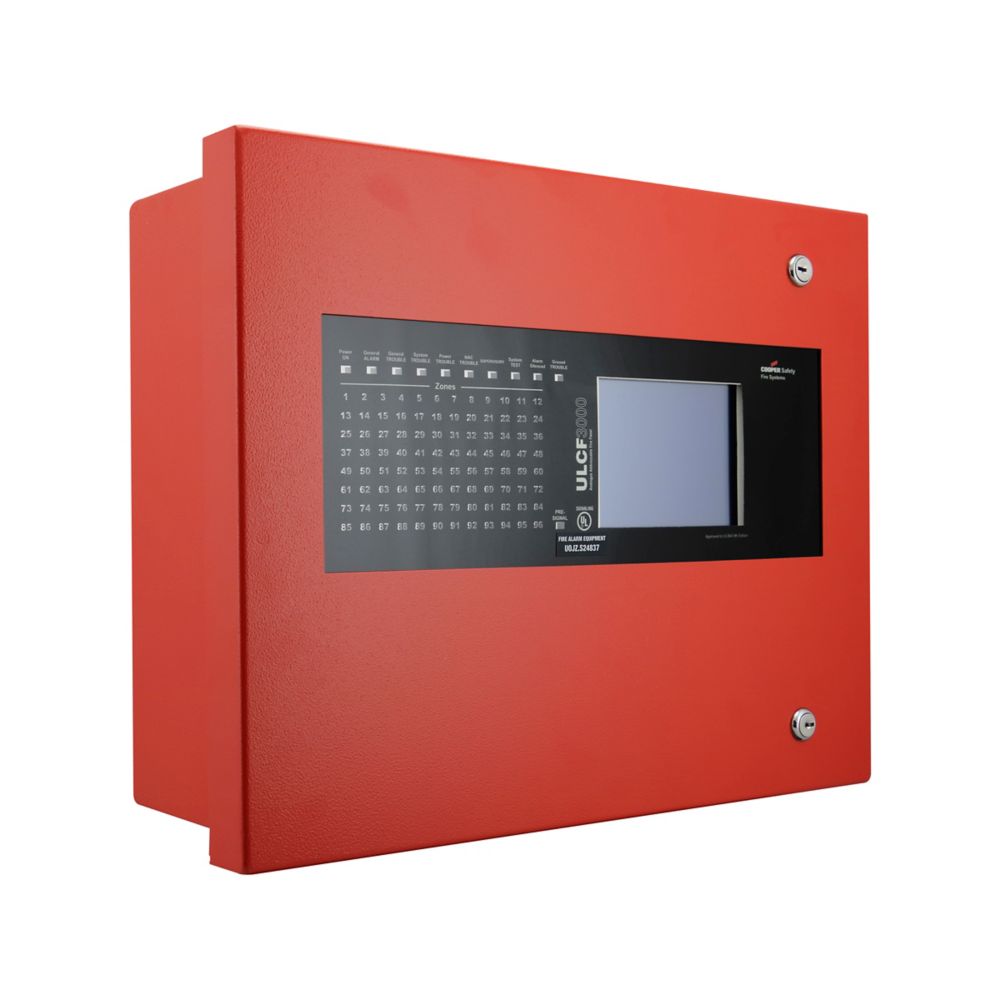

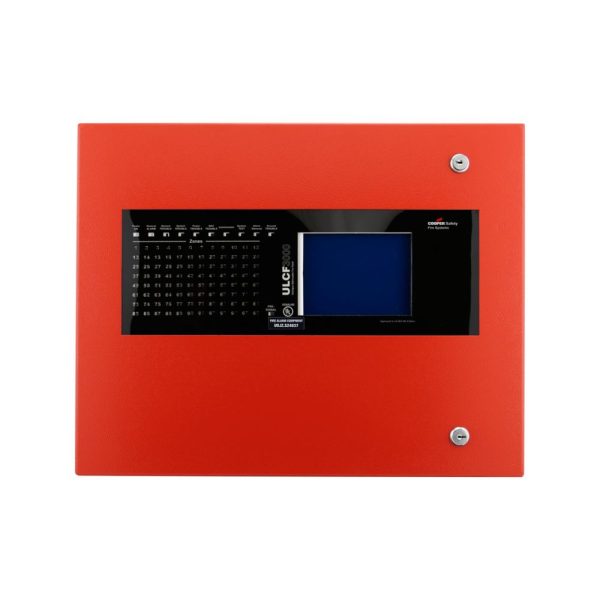

COOPER/EATON Addressable Fire Alarm Panel ULCF30004GRM
Eaton ULCF3000 panel, Addressable, Control Panels, Large System, UL Systems, 4 Loops, Red Enclosure.
Inquiry Form
We will get in touch with you shortly
Description
Description
General specifications
| Product Name |
Eaton ULCF3000 panel
|
| Catalog Number |
ULCF30004GRM
|
| EAN |
5018986951587
|
| Product Length/Depth |
205 mm
|
| Product Height |
395 mm
|
| Product Width |
495 mm
|
| Product Weight |
22.887 kg
|
| Certifications |
UL
|
| Global Catalog |
ULCF30004GRM
|
Product specifications
| Mounting Method |
Surface mounting
|
| Number of detection groups |
96
|
| Number of outputs for acoustic signal generators |
4
|
| Number of outputs for optical signal generators |
4
|
| Number of detector addresses |
200
|
| Operating voltage |
24 V
|
| Number of batteries |
2
|
| Battery voltage |
12 V
|
| Battery capacity |
7 Ah
|
| Class change capability |
Yes
|
| Construction material back enclosure |
Mild steel
|
| Construction material front enclosure |
ABS
|
| Humidity (Non Condensing) – Max |
75 %
|
| Humidity (Non Condensing) – Min |
0 %
|
| Ingress protection |
IP30
|
| Maximum number of addressable loops |
4
|
| Operating temperature – max |
40 °C
|
| Operating temperature – min |
-5 °C
|
| System topology |
Addressable
|
| Maximum network size (number of nodes) |
126
|
| Weight (Without Batteries) |
22.169 kg
|
| Type of display |
Touchscreen
|
| Auxiliary free output |
Yes
|
| Auxiliary relays |
Fire/Fault
|
| Product branding |
Eaton Cooper
|
| Suitable for |
Bus Connection
|
| Integrated function |
Interface External
Emergency Power Supply Integrated Addressable |
| Cable entry location |
Top: 31 M20 Knockouts, Rear: 12 M20 Knockouts
|
| UL certification standards |
UL 864 (Control Units and Accessories)
|
| External connection ports |
RS232
RS485 |
