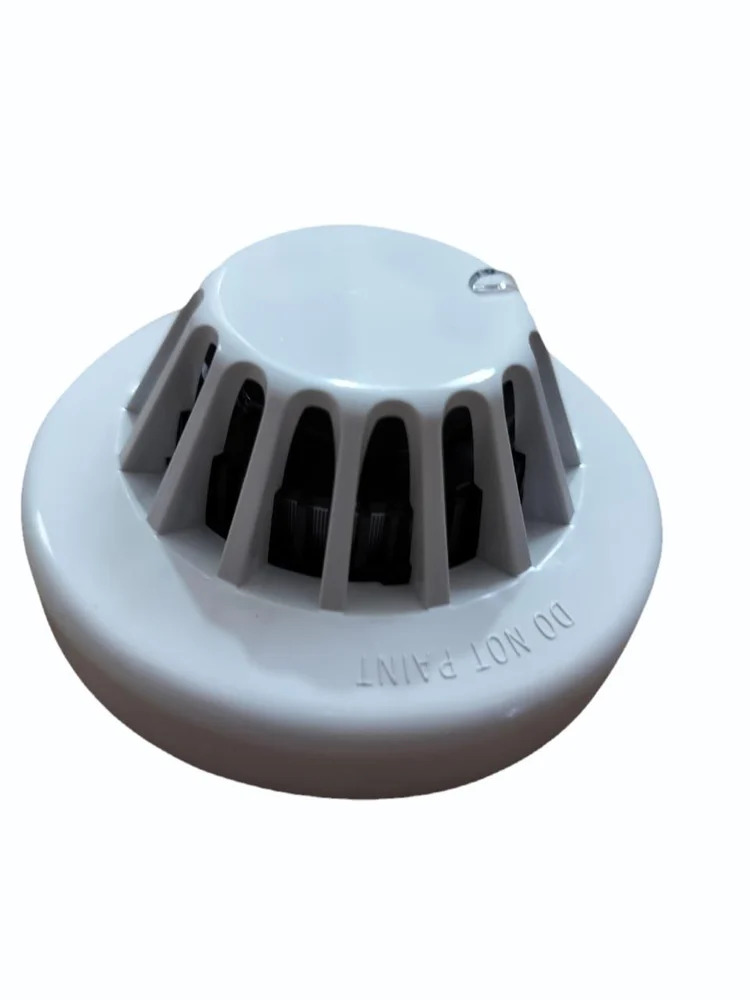

COOPER/EATON Addressable Multi Detector ULCAPT340
Responds quickly to fast clean burning fires. Maintains the advantage of optical sensors when detecting smoldering fires. The thermal enhancement of this sensor allows a higher alarm threshold, providing greater rejection of false alarms. The sensor will also give an alarm at temperatures above 135°F. For opto-heat and photoelectric operation the sensor automatically compensates for gradual increase in the scatter signal due to contamination e.g. dust build up.
Inquiry Form
We will get in touch with you shortly
Description
Description
| Code | ULCAPT340 |
| Description | Addressable sensor |
| Standards | UL268, UL521 |
| Supply ratings | |
| Working voltage | 18 V dc to 30 V dc |
| Voltage waveform | Filtered dc +/- 1 V (max), ripple @120Hz |
| Standby current | 220 μμA (average) |
| Alarm current | 5 mA (max) |
| Timings | |
| Start-up time | 2 seconds |
| Reset time | 2 seconds (max) |
| Dimensions | |
| Diameter (mm) (incl base) | 104 |
| Depth – D1 (mm) (incl base) | 55 |
| Depth – D2 (mm) (excl base) | 43 |
