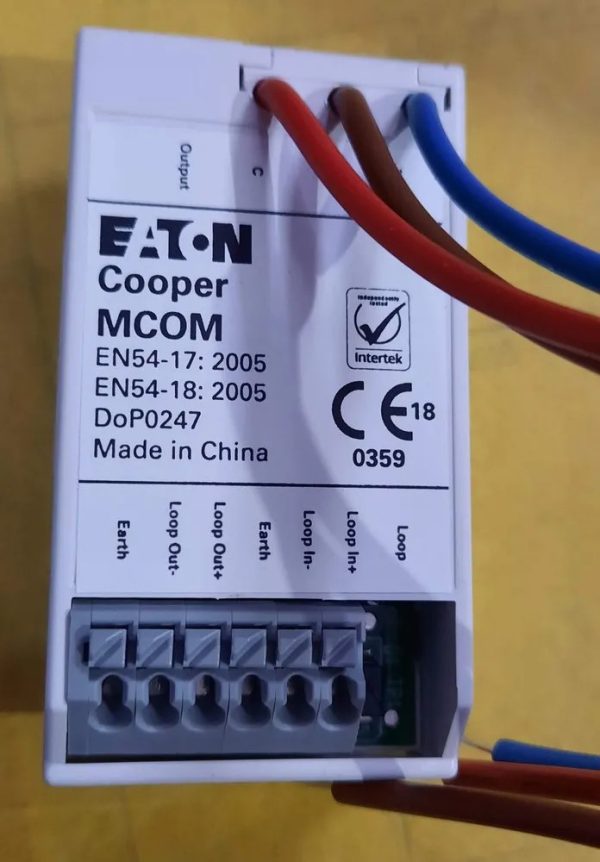

COOPER/EATON Micro Single Channel Output Unit ULMCOM
• Soft addressed
• Integral short circuit isolator
• Single address
• Non latching changeover relay contacts
• Suitable for switching low volts control gear
• Optional variant: ULMCOM-S
• Quick and simple to install
• No hard addressing required (plug and play)
• Compact size
Inquiry Form
We will get in touch with you shortly
Description
Description
Technical Data:
| Code | ULMCOM / ULMCOM-S |
| Description | Single Channel Input Units |
| Standards | UL864 9th edition |
| Current | 332µA |
| Operating Voltage | 24V dc |
| Contact rating | 1A Resistive, pf=1 (max) |
| Max line impedance 16Ω | 16Ω |
| Dimensions (H x W x D) | 65mm x 35mm x 18.5mm |
| Physical Weight | 0.05kg |
| Ingress Protection | IP40 |
