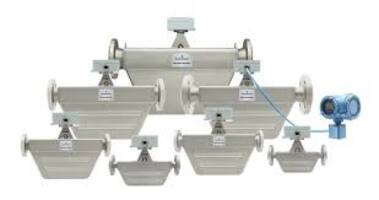

Emerson Micro Motion TA-Series Coriolis Flow and Density Meters
Product Description
The TA-Series Coriolis Flow and Density meters have all wetted material constructed from pure tantalum and are ideal for handling corrosive fluids, such as acids and bases. Multiple line sizes are available to provide an ideal platform for batching, distribution, allocation and intra-plant measurement applications.
Inquiry Form
We will get in touch with you shortly
Description
Description
Specifications:
- Mass flow accuracy (Liquid)
- ±0.10% (Repeatability 0.05% of rate)
- Density accuracy (Liquid)
- ±0.001 g/cm³ (Repeatability 0.0005 g/cm³)
- Line Size
- 1/10” (DN2) – 3” (DN80)
- Pressure Range
- Up to 580 psig (40 barg)
- Temperature Range
- -40°F to 356°F (-40°C to 180°C)
- Electronics (software)
- Expansive I/O options including mA, Frequency, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
Features
- Achieve highly accurate mass volume flow and density measurement in applications that require tantalum wetted components
- Available in seven line sizes
- Offered solely with the 5700 9-wire transmitter
- Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging
- Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Other Available Model:
- Micro Motion ELITE® Peak Performance Coriolis Flow and Density Meters
- Micro Motion F-Series Compact, Drainable Coriolis Flow and Density Meters
- Micro Motion H-Series Hygienic Coriolis Flow and Density Meters
- Micro Motion R-Series General Purpose Coriolis Flow and Density Meters
- Micro Motion T-Series Straight Tube Coriolis Flow and Density Meters
- Micro Motion TA-Series Coriolis Flow and Density Meters
- Micro Motion CNG Coriolis Flow Meter
