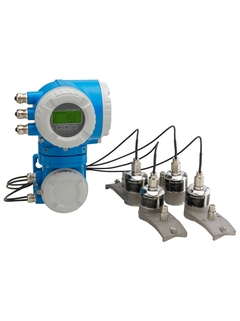

Endress+Hauser Proline Prosonic Flow P 500 Ultrasonic Flow Meter

Description

Specificaton:

• Measuring principle

  Ultrasonic flow

• Product headline

  Clamp-on flowmeter for limited spaces in process industries with up to 3 I/Os.
  Constant accuracy even when mounted with short inlet run thanks to FlowDC.
  Bidirectional measurement of various fluids, e.g. liquid hydrocarbons and chemicals.

• Sensor features

  High safety standards – SIL by design,
  international hazardous area approvals. Long-term stable signal – maintenance-free
  permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available.
  Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (½ to 160″). Medium temperature: –40 to +550 °C (–40 to +1022 °F).

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os. Reduced complexity and variety –
  freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
  Remote version with up to 3 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

• Nominal diameter range

  Dual channel, 1 or 2 paths : DN 15 to 4000 (1/2 to 160″)

• Sensor materials

  Clamp on system:
  Sensor holder 1.4301/304, 1.4404/316L
  Sensor housing 1.4301/304, 1.4404/316L
  Strapping bands 1.4301/304, 1.4404/316L

• Measured variables

  Volume flow, sound velocity, flow velocity, totalizer

• Max. measurement error

  Volume flow:
  ±3% o.r. for DN 15
  ±2% o.r. for DN 25 to DN 200
  ±2% o.r. above DN 200

• Measuring range

  0 to 15 m/s (0 to 50 ft/s)

• Max. process pressure

  N/A

• Medium temperature range

  DN 15 to 65 (½to 2½”): –40 to +150°C (–40 +302 °F)
  DN 50 to 4000 (2 to 160″): –40 to +170°C (–40 to +338 °F)
  DN 50 to 600 (2″ to 24″): 150°C to 550°C (+302 to +1022 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)
  –50 to +60 °C (–58 to +140 °F) optional

• Sensor housing material

  N/A

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

• Degree of protection

  Sensor remote version: IP68 type 6P
  Transmitter remote version: IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control(operation from outside)
  Optional: WLAN
  Configuration via local display and operating tools possible

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, Modbus RS485

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, FM/CSA, EAC, UK Ex, KC

• Other approvals and certificates

  Other approvals and certificates

• Product safety

  CE, C-tick, EAC-marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Flowmeter verification for all frequencies except 0.3 MHz, reference line size: 5 MHz DN 50, all other frequencies DN 100
  Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a
