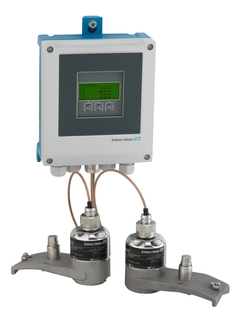

Endress+Hauser Proline Prosonic Flow W 400 Ultrasonic Flow Meter

Description

Specification:

• Measuring principle

  Ultrasonic flow

• Product headline

  Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry.
  Short inlet run thanks to FlowDC.
  Bidirectional measurement for water and wastewater as well as process water and hydropower plants.

• Sensor features

  Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80″). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available.
  Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (½ to 160″). Medium temperature up to +130 °C (+266 °F).

• Transmitter features

  Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology.
  Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring.

• Nominal diameter range

  DN15 to 4000 (1/2 to 160″)

• Sensor materials

  Clamp on system:
  Sensor holder 1.4301 (304), 1.4404 (316L)
  Sensor housing 1.4301 (304), 1.4404 (316L)
  Strapping bands 1.4301 (304), 1.4404 (316L)

• Measured variables

  Volume flow, Flow velocity, Sound velocity

• Max. measurement error

  Volume flow:
  ±3% o.r. for DN15
  ±2% o.r. for DN25 to 200
  ±2% o.r. above DN200

• Measuring range

  0 to 15 m/s (0 to 50 ft/s)

• Max. process pressure

  N/A

• Medium temperature range

  –40 to +130 °C (–40 to +266 °F)

• Ambient temperature range

  Sensor DN 15 to 65: -40 to 130°C
  Sensor DN 50 to 4000: -40 to 130°C

• Sensor housing material

  N/A

• Transmitter housing material

  Wall-mounted housing
  Polycarbonat; AlSi10Mg, coated

• Degree of protection

  Transmitter: IP66/67, Type 4X enclosure
  Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)

• Display/Operation

  4‐line backlit display with touch control (operation from outside)
  Configuration via local display, web browser and operating tools possible

• Outputs

  3 ouputs:
  4‐20 mA/4‐20 mA HART (active)
  Pulse/frequency/switch output (passive)
  Pulse/frequency/switch output (passive)
  Modbus RS485

• Inputs

  Status input

• Digital communication

  HART

• Power supply

  AC 100 to 240 V / AC/DC 24 V

• Approvals

  cCSAus

• Other approvals and certificates

  Other approvals and certificates

• Product safety

  CE, C-tick marking, EAC-marking

• Metrological approvals and certificates

  Flowmeter verification for all frequencies except 0.3 MHz, reference line size: 5 MHz DN 50, all other frequencies DN 100
  Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a
