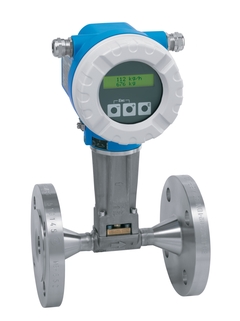

Endress+Hauser Proline Prowirl 72F Vortex Flow Meter
Benefit:
• High resistance to vibrations, temperature shocks,
contaminated fluids and water hammer
• No maintenance, no moving parts, no zero-point drift
(“lifetime” calibration)
• Software initial settings save time and costs
Inquiry Form
We will get in touch with you shortly
Description
Description
Specification:
-
Measuring principle
Vortex
-
Product headline
Volume flow meter for measurement of basic liquid / gas /steam applications
-
Nominal diameter range
DN 15…300
1/2″…12″ -
Max. measurement error
+-0.75 %
-
Measuring range
0.16…2’360 m3/h
-
Max. process pressure
PN10…250
Cl 150…1500
JIS 10…40K -
Medium temperature range
-200…+400°C
(-328…+752°F)
up to +450°C / +842°F on request -
Degree of protection
IP 67
NEMA 4x -
Display/Operation
Two line liquid
crystal display
Push buttons
Quick Setup -
Outputs
4…20mA
Pulse
Status
PFM -
Inputs
–
-
Digital communication
HART
PROFIBUS PA
FOUNDATION Fieldbus -
Hazardous area approvals
ATEX
FM
CSA
TIIS
NEPSI/IEC on request
