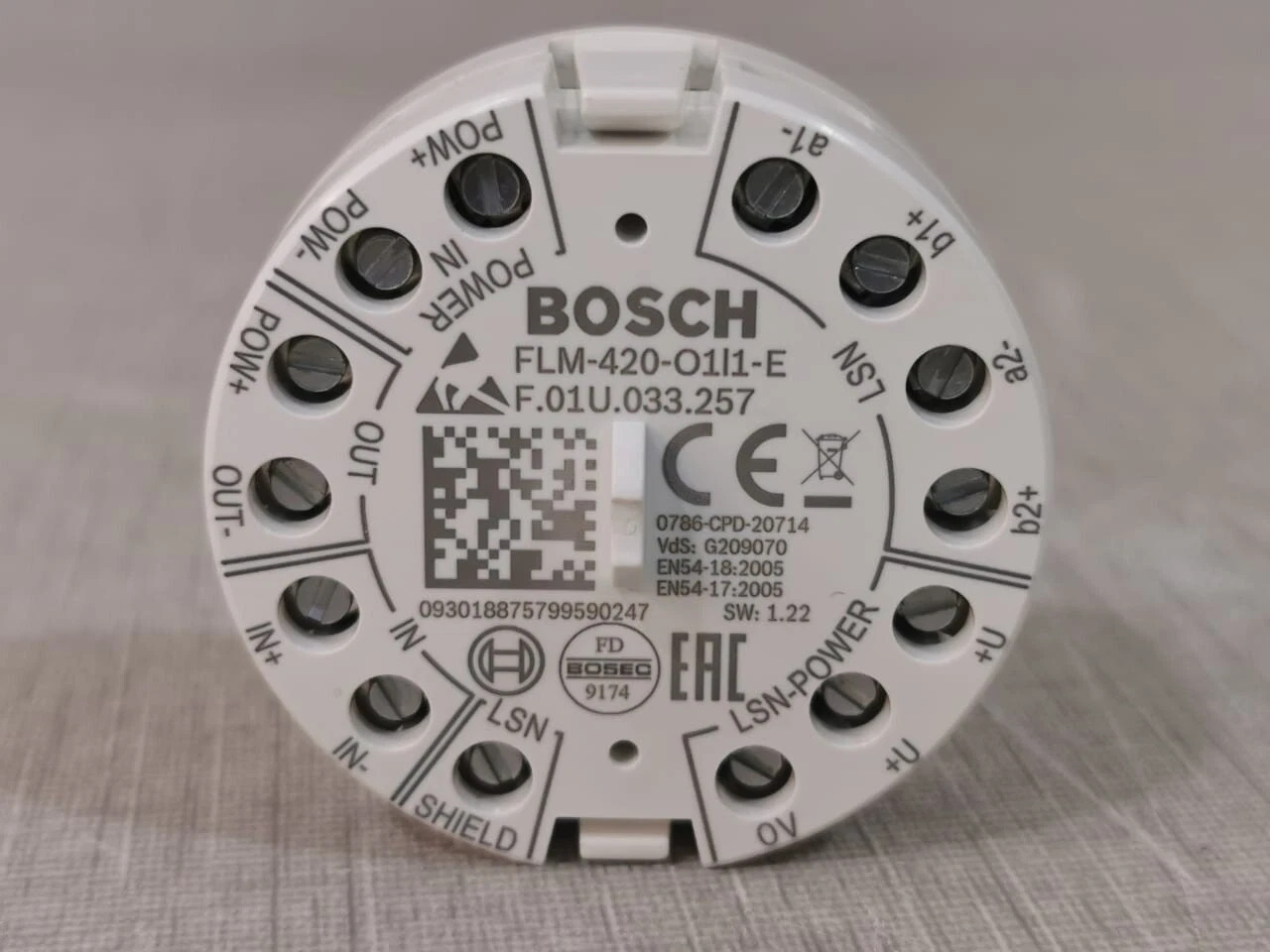

BOSCH Output-Input Modules FLM‑420‑O1I1
- Semi-conductor output electrically isolated from LSN loop and short-circuit proof
- Max. switchable current per output 700 mA
- Individually selectable input monitoring functions (EOL or contact)
- Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators
Inquiry Form
We will get in touch with you shortly
Description
Description
- Classes of equipment as per IEC 60950: III
- LSN input voltage: 15 V DC to 33 V DC
- Max. current consumption from LSN: 1.9 mA
- External power supply: 5 V DC to 30 V DC
- Operating relative humidity, non-condensing (%): 0 – 96 %
- Material: Plastic
- Operating temperature (°C): -20 – 55 °C
- Weight (g): 35g
