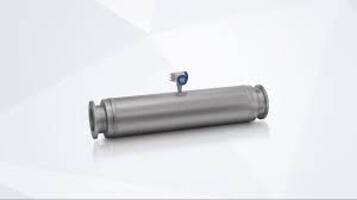

KROHNE OPTIMASS 2400 Coriolis Mass Flowmeter
Coriolis mass flowmeter for the highest capacity bulk measurement
- For gases and liquids up to 4,600 t/h; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM)
- CT: OIML R117, MI-005, MI-002; API and AGA compliant
- Flange: DN100…400 / 4…16″, max. PN160 / ASME Cl 1500
- 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®
Inquiry Form
We will get in touch with you shortly
Description
Description
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For bulk and custody transfer (CT) measurement of gases and liquids |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 180 barg/ 2600 psig |
| Process temperature | -45…+130°C/ -49…+266°F |
Materials
| Measuring tube | Super Duplex stainless steel (1.4501/Alloy100), Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN100…400 ASME (B 16.5): 4…16″ JIS (B 2220): 100A |
| Hygienic connections | Clamp (DIN 32676): DN100; Clamp (ISO 2852): 101.6 Tri-Clamp: 4″ Threaded ferrule (DIN 11851): DN100 Flange with groove (DIN 11864-2): DN100 Threaded ferrule (SMS 1146): 101.6 mm IDF/ISS: 4 |
Approvals/Standards
| Certificates/Approvals Others | NACE |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, FM, CSA, UKEX |
| Certificates/Approvals Hygienic | FDA, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, EtherNet/IP™, PROFINET, Bluetooth |
