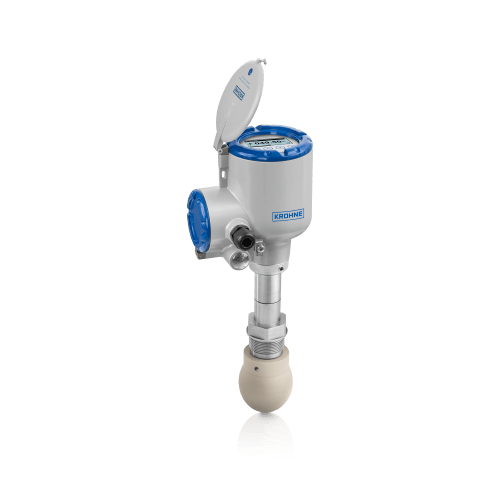

KROHNE Radar level Transmitter OPTIWAVE 7400
Radar level transmitter for advanced applications with agitated and corrosive liquids
- Continuous, non-contact level measurement in harsh environments
- 24 GHz radar, Horn or Drop antennas
- Measuring range: 0…100 m / 328 ft
- -50…+200°C / -58…+392°F, up to +700°C / +1292°F in non-ex applications; -1…100 barg / -14.5…1450 psig (higher on request)
Inquiry Form
We will get in touch with you shortly
Description
Description
Specifications:
General information
| Product type | Level transmitter |
| Product family name | OPTIWAVE |
| Product positioning | For agitated and corrosive liquids |
| Measurement variables | Distance, Level, Mass, Reflection, Volume |
| Measurement principle | Radar (FMCW) |
| Level measurement type | Continuous measurement |
| Contact to measured medium | No |
| Interface measurement | No |
| Redundancy | No |
| Measured media | Liquids, Slurries, Pastes |
| Measuring range (liquids) | 0…100 m/ 0…328 ft |
| Ambient temperature | -40…+80°C/ -40…+176°F |
| Measuring point | Pressurised tank, Open tank, Stilling well |
Operating conditions
| Process pressure | -1…100 barg/ -14.5…1450 psig |
| Process temperature | -50…200°C/ -58…+390°F Special version (on request): |
Materials
| Antenna | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Gaskets | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375 |
Process connections
| Flange connections | EN (1092-1): DN40…200 ASME (B 16.5): 1½…8″ JIS (B 2220): 40…200A |
| Pressure ratings | EN (1092-1): PN100 ASME (B 16.5): Cl 1500# JIS (B 2220): 10k |
| Thread connections | Male: G1½ 1½ NPT |
Approvals/Standards
| Certificates/Approvals Others | NACE, WHG, CRN / ASME B31.3 |
| Certificates/Approvals Ex | ATEX, cQPSus, IECEx, NEPSI, EAC Ex |
| Certificates/Approvals Marine | DNV, NK |
| Certificates/Approvals Safety | SIL 2/3 |
| Ingress protection | IP66/68, NEMA4X/6P |
| NAMUR compliance | NE 107, NE 21, NE 43, NE 53 |
Communication
| Analogue outputs | 4…20 mA |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA |
Accuracy
| Accuracy (liquids) | ±2 mm/ ±0.08 in |
Features & Options
- 2-wire, loop-powered, with HART®7
- Distance piece for non-ex applications with molten salt or other high temperature liquids of up to +700°C / +1292°F
- PTFE or PEEK Drop antennas
- 316L Metallic Horn antennas with optional purging system
- Heating / cooling systems to prevent crystallisation or build-up in Metallic Horn antennas
- TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks
- ±2 mm / ±0.08″ accuracy
- METAGLAS® second sealing barrier for toxic and dangerous liquids
- Antenna extensions to suit any nozzle length
- Empty tank spectrum function eliminates false reflections caused by tank internals
- Large choice of flange and thread connections
- Quick Coupling system permits removal of the converter under process conditions and 360° rotation for easy reading of display
- Converter compatible with all OPTIWAVE 7300 C flange connections
- Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
- PACTware™, HART® DD and DTM provided free of charge with full functionality
- Extensive device diagnostics acc. to NAMUR NE 107
- SIL 2/3 certified for safety-related applications
