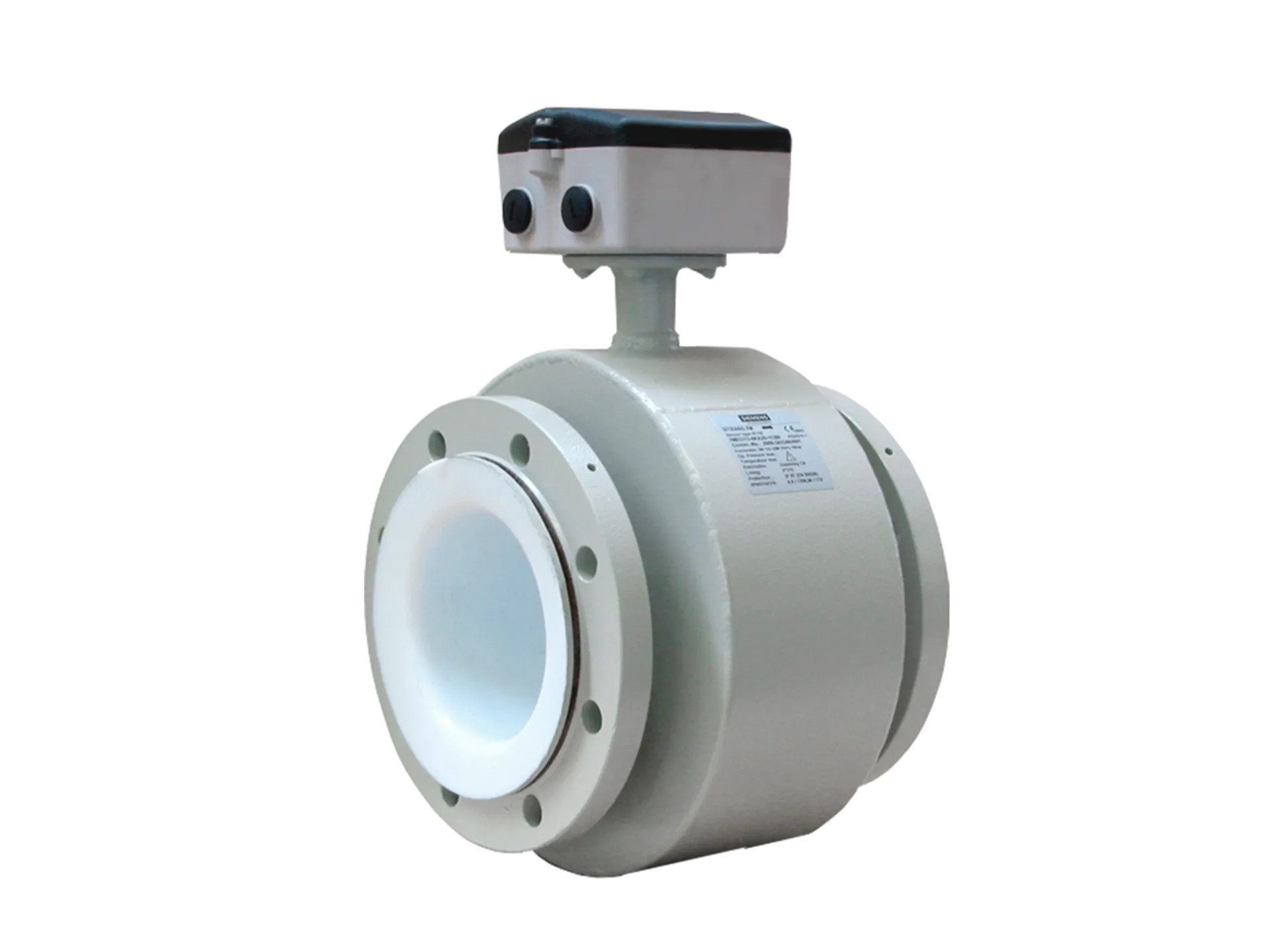

SIEMENS/SITRANS FM TRANSMAG 2 with Sensor Electromagnetic Flowmeter
Benefits
- Sensor design – provides a sturdy construction with robust and reliable design and optional IP68 sensor protection
- Stable zero point – ensuring accurate, repeatable, fast-responding and stable flow signal
- SmartPLUG concept – true Plug & Play with automatic sensor recognition
- Pulsed alternating field – provides excellent signal strength and zero point stability
- Liners – broad variety available to fit every application
- Electrodes – wide range of materials available
Inquiry Form
We will get in touch with you shortly
Categories: Flow Measurement Technologies, Instrumentation
Brand: Siemens
Description
Description
Detail
Meassuring range | 0 to 10 m/s |
---|---|
Nominal Sizes | From DN 15 to DN 1000 (½” to 40″) |
Accuracy | ± 0.5 % of flow rate |
Operating pressure | Max. 40 bar (Max. 580 psi) |
Ambient temperature | From -20 to 60 °C (-4 to 140 °F) |
Medium temperature | From -20 to 150 °C (-4 to 300 °F) |
Liners | Neoprene PTFE Hardrubber Linatex Novolak |
Electrodes | AISI 316 Ti (mat. No. 1.4571/316 Ti) Hastelloy C4 (mat. No. 2.4610) Platinum head with shaft (mat. No. 1.4571/316Ti) Titanium Tantalum |
Enclosure sensor | IP67 (NEMA 4x) IP68 (NEMA 6) – optional |
Material | Carbon steel |
Application Examples: ideal for difficult applications such as: high concentrated paper stock > 3 %, heavy mining slurries, mining slurries with magnetic particles
