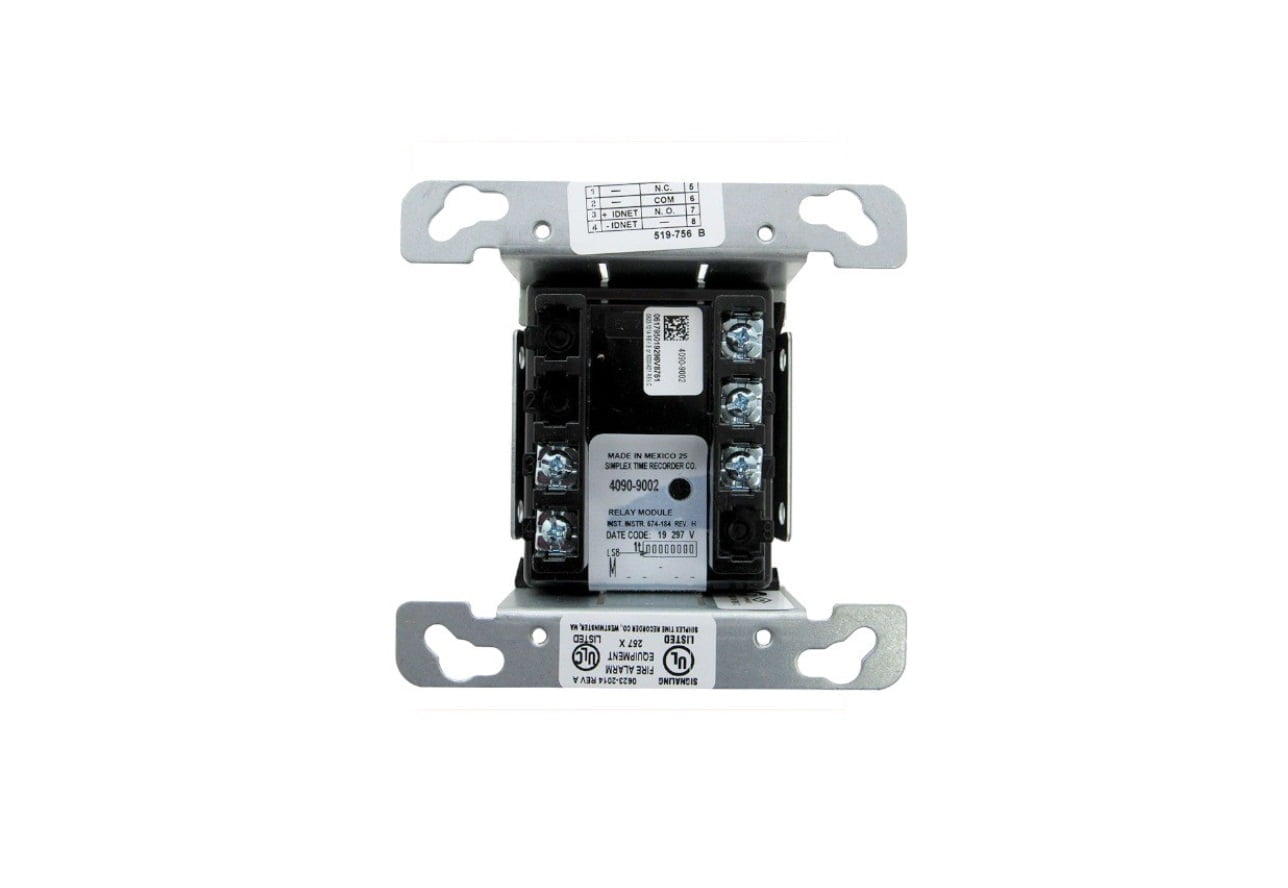

SIMPLEX Addressable Output/Control Module 4090-9002
IDNet Relay IAMs allow the Simplex 4010 fire alarm control panel to control a remotely located Form “C”
contact using IDNet addressable communications for both data and module power. Typical applications would be for switching local power for control functions such as elevator capture, or control of HVAC components, pressurization fans, dampers, etc. Relay status is also communicated requiring only one device address.
Inquiry Form
We will get in touch with you shortly
Description
Features
IDNet addressable interface modules for use with Simplex model 4010 fire alarm control panels**
4090-9002, Individual Addressable Relay Module (Relay IAM):
- A single addressable point provides control and status tracking of a Form “C” contact
- Low power latching relay design allows IDNet communications to supply both data and module power
Monitor ZAMs (Zone Adapter Modules) provide an IDNet addressable interface to a conventional initiating device circuit (IDC) available as:
- 4090-9101, Class B (Style B) monitoring for 2-wire or 4-wire initiating devices, with power reset connections for 4-wire devices
- 4090-9106, Class A (Style D) monitoring for 2-wire initiating devices
- Refer to device compatibility
- Zone device power is supplied separately (typically from fire alarm control panel)
Compact, sealed construction:
- Enclosed design minimizes dust infiltration • Mounts in standard 4” square electrical box • Screw terminals for wiring connections UL listed to Standard 864
Specifications
Product: Addressable Relay Module
Brand: SIMPLEX
Model: 4090-9002
Weight: 90.7gm
Communications: ID Net communications, 1 address per device
Wire Connections: Screw terminals for in/out wiring, 18 to 14 AWG wire (0.82 to 2.08 mm2 )
Temperature Range: 32° to 120° F (0° to 49° C), intended for indoor operation
ID Net Communications Wiring Reference: Up to 2500 ft (762 m) from control panel
Dimensions: 4 ⅛” H x 4 ⅛” W x 1 ⅜” D (105 mm x 105 mm x 35 mm)
